Accuracy Class	0.03 C3	Units
Rated Capacities	2.5, 5, 10, 15, 20, 25, 30, 50, 70, 100T	T
Rated Output	3mV/V ± 0.25%	mV/V
Non-linearity	0.03%	F.S
Hysteresis	0.03%	F.S
Non-repeatability	0.02%	F.S
Creep at rated output	0.03%	% of applied load
Temperature effect span	15 PPM	% of applied load/C
Temperature effect zero	26 PPM	% of rater output/C
Compensation temperature range	-10 ~ 40	Degrees C
Operating temperature range	-40 ~ 65	Degrees C
Zero balance	± 1%	F.S
Input impedance	770 ± 15	Ohms
Output impedance	700 ± 3	Ohms
Safe Overload	150%	F.S
Ultimate overload	300%	F.S
Recommended excitation	10	Volts DC
Maximum excitation	15	Volts DC
Insulation Resistance	>5000	Megaohms
Construction material	Alloy tool steel
Environmental protection	IP67

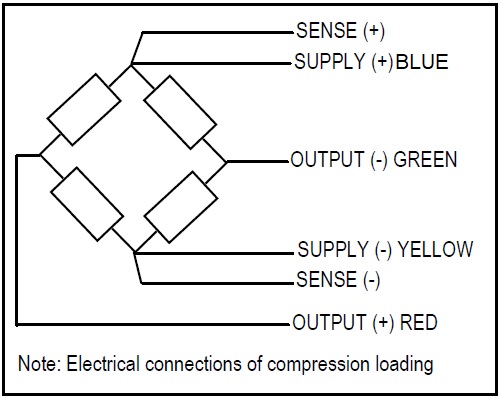

Cable	6 meter 4-core screened nitrile

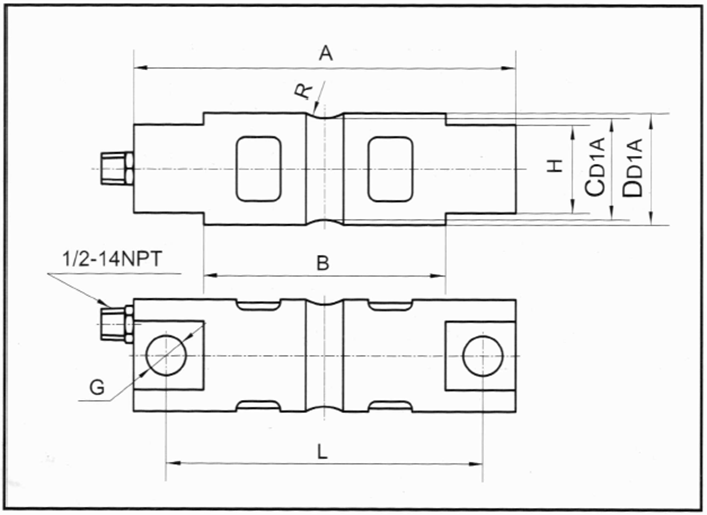

Capacity	A	B	C	D	L	H	G	R
2.5 T - 5 T	206	133	37	43	174	28	16	12
10 T	206	133	37	43	174	28	16	12
15 T - 30 T	260	165	69	76	215	60	26	25
50 T	285	190	82	88	241	63	26	38
70 T	285	190	92	99	241	71	26	38
100 T	408	254	131	136	330	116	39	50
