Route Weighing Indicators
Route 1000 Series
Route 1000 series indicator
  • 3 1/2 or 4 1/2 Digit Display
  • IP 65 Plastic Box
  • Communications: 0-2V, 1-5V, 0-10V or 4-20mA.
Route 2400 Series
Route 2400 - 2000 Series indicator
  • 4 1/2 digit LED display
  • in IP 65 alucast enlcosure or IP 65 Plastic enclosure
  • 4-20mA, 0-10V communication signal
  • Tough accurate and reliable
  • Affordable

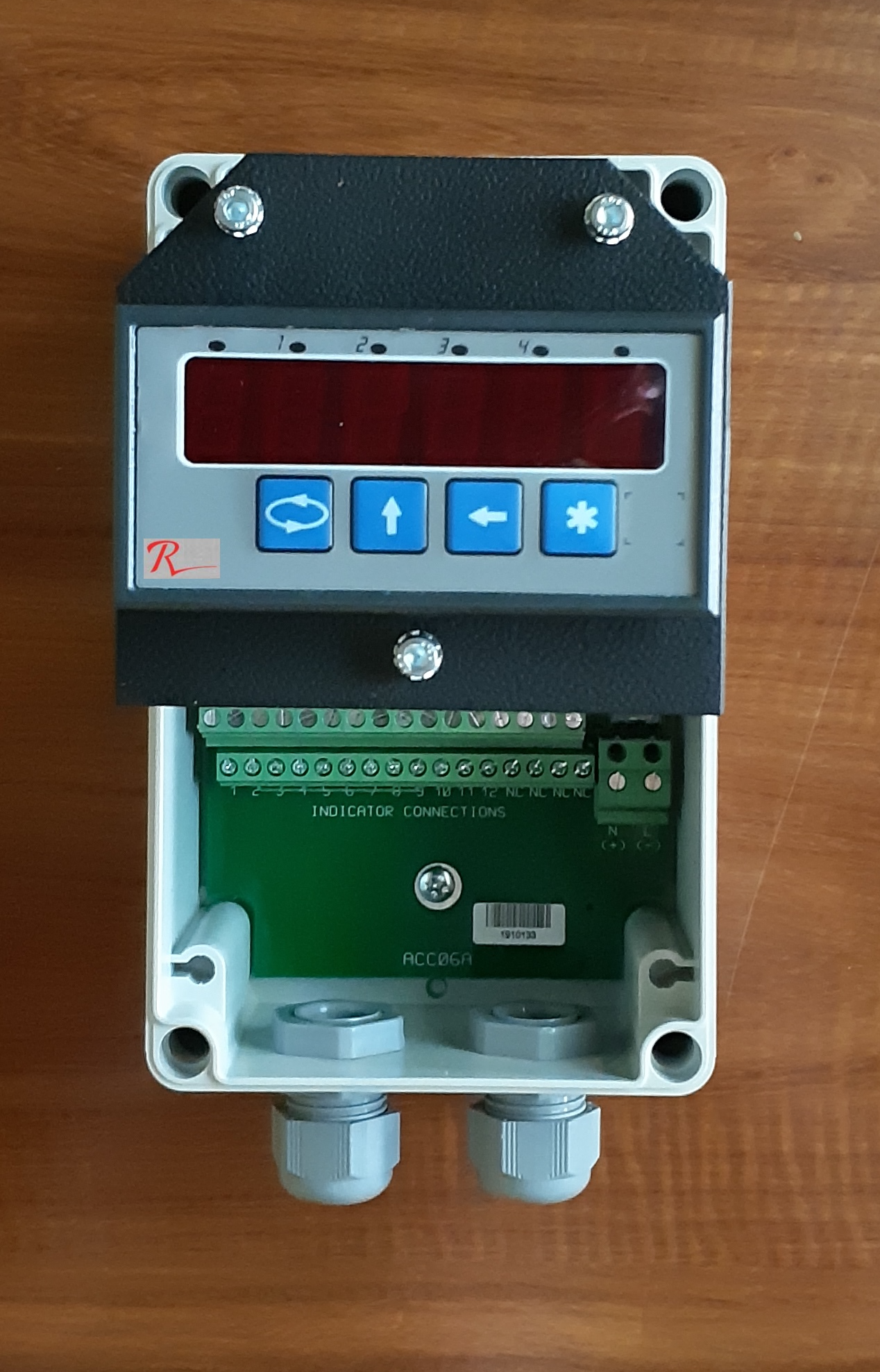

Route 2500 Series
Route 2500 LCD Display from Route Calibration and loadcell manufacturing and loadcell systems
  • 4 1/2 digit LED display
  • in IP 65 alucast enlcosure
  • 4-20mA, 0-10V communication signal
  • Can also be supplied with 2 or 4 potential free/relay contacts as
    well as parallel BCD.
  • Tough accurate and reliable
  • Affordable
Route 2700 Series
Route 2700 indicator made by Route calibration loadcell manufacturing and laodcell services
  • 4 1/2 digit LCD display
  • in IP 65 alucast enlcosure
  • 4-20mA, 0-10V communication signal
  • Can also be supplied with 2 or 4 potential free/relay contacts as
    well as parallel BCD.
  • Tough accurate and reliable
  • Affordable

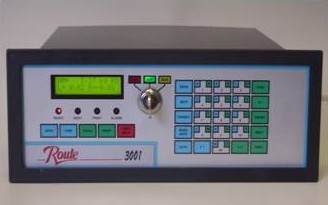

Route 3000 Panel Mount
Route 3000
  • Low cost microprocessor based indicator
  • Modular to suit almost any application
  • Hundreds of software applications available
  • Applications: batching(up to four components), static weighing, crane weighing, overload protection, weighbridges, in motion rail weighing.
  • Options: 4 independant weighing channels, 4 independant analog outputs, 6-16I/O's, RS 232 RS422 and RS 458 various transmission protocols.

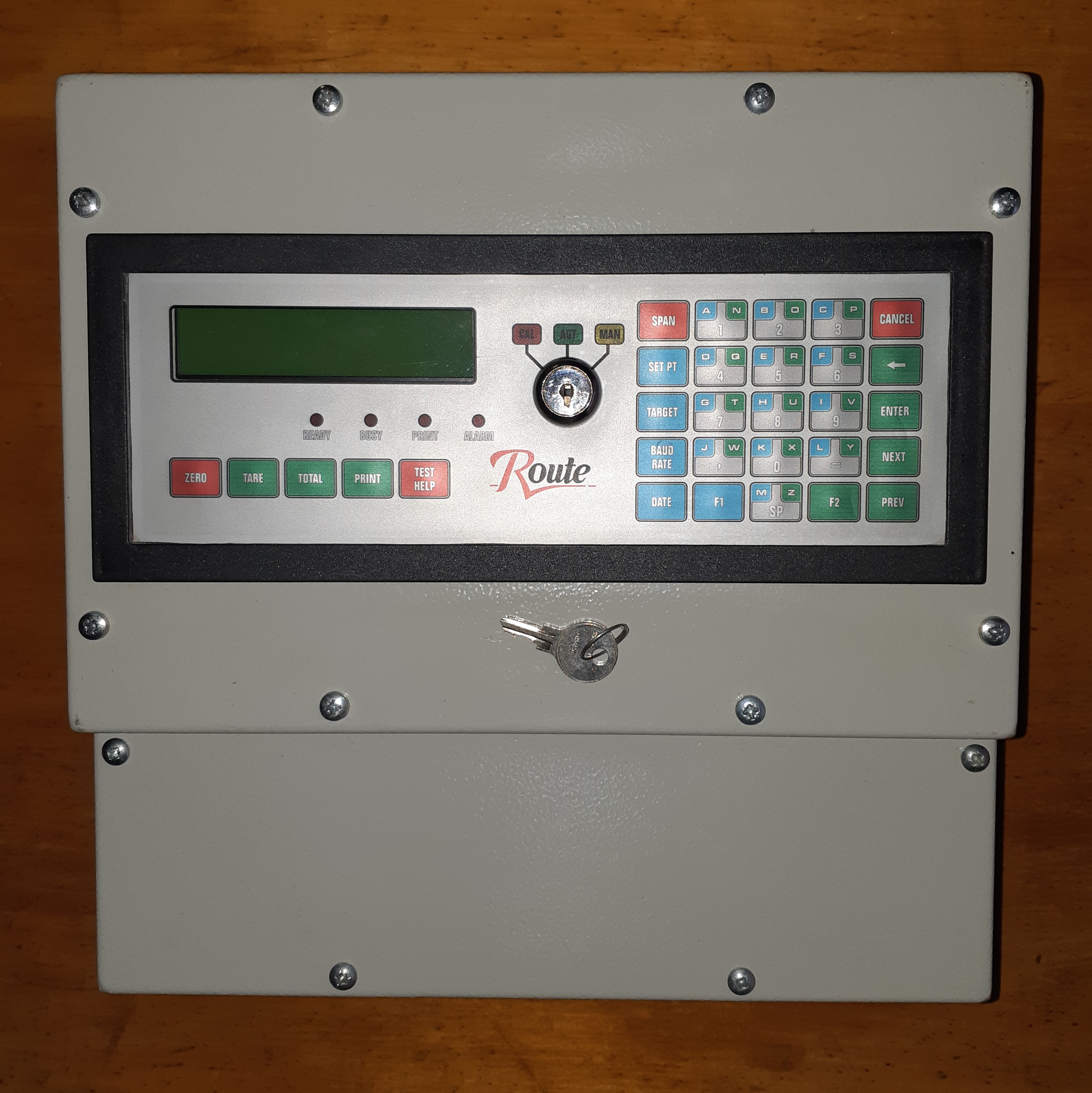

Route 3000 Wall Mount
Route Calibration 3000 series controller from route calibration and loadcell manufacturing and services
  • Low cost microprocessor based indicator
  • Modular to suit almost any application
  • Hundreds of software applications available
  • Applications: batching(up to four components), static weighing, crane weighing, overload protection, weighbridges, in motion rail weighing.
  • Options: 4 independant weighing channels, 4 independant analog outputs, 6-16I/O's, RS 232 RS422 and RS 458 various transmission protocols.
Route 5000 Series Wall Mount/Panel Mount
Route 500 Indicator from Route Calibration, Loadcell Manufacturing and Loadcell systems
  • Micro Processor based controller
  • Available in wall mount, Panel mount and Desktop version
  • Fully expandable
  • Applications: Batching with recipe handling, conveyor belt blending systems, dual skip loading.
  • Options: Dual weighing channel, RS 232/485 ports, Supports MOD-BUS
Route 7000 Series
Route 7000 indicator from Route calibration, Loadcell Manufacturing and Loadcell Systems
  • Micro Processor based controller
  • 19 inch rack mount
  • Completely modular system
  • Application: Multi channel batching system, Multi channel skip loading and totalizing, Multi channel blending systems
  • Options: 16 weighing channels, 128 digital I/Os, 96 analog I/Os
    and 4 x RS 232/485 ports.
ROUTE Remote Digital Display
Remote digital large display from route calibration and loadcell manufacturing
  • Display Units:5
  • Character Height: 100 mm
  • Communications:Selectable for RS232 or 20mA current loop
  • Standard: IP 67
  • Dimension: 500 x 150 x 100 mm
  • Weight: 5 kg
