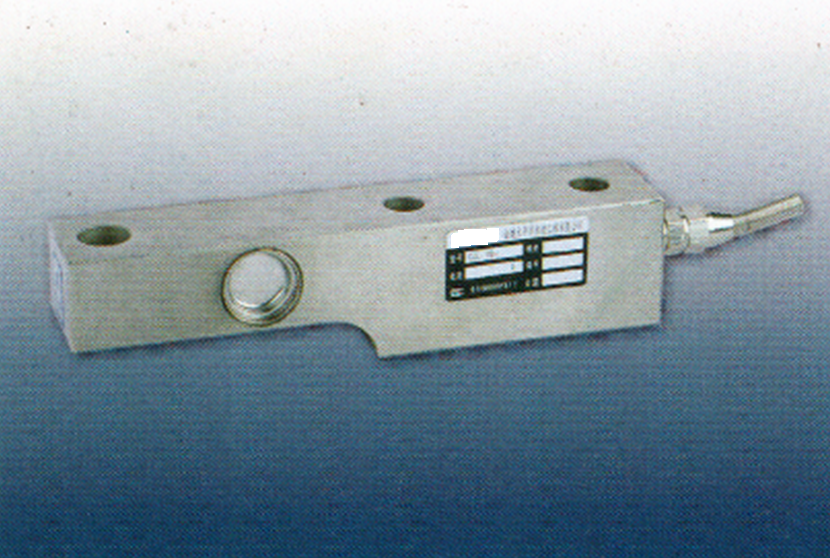

RCB SPECIFICATION
Equivalent to: PA6141/PA6141W, PA6141A/PA6141AW
PERFORMANCE
Accuracy Class |
0.03 |
Units |
|---|---|---|
Rated Capacities |
1, 1.5, 2, 3, 5, 7, 10 t |
kg |
Rated Output |
2.0mV/V ± 0.1% |
mV/V |
Non-linearity |
0.03% |
F.S |
Hysteresis |
0.03% |
F.S |
Non-repeatability |
0.02% |
F.S |
Creep at rated output |
0.03% |
% of applied load |
Temperature effect span |
15 PPM |
% of applied load/C |
| Temperature effect zero |
26 PPM |
% of rated output/C |
Compensation temperature range |
-10 ~ 40 |
Degrees C |
Operating temperature range |
-40 ~ 65 |
Degrees C |
Zero balance |
± 1% |
F.S |
Input impedance |
385 ± 15 |
Ohms |
Output impedance |
350 ± 30 |
Ohms |
Safe Overload |
150% |
F.S |
Ultimate overload |
300% |
F.S |
Recommended excitation |
10 |
Volts DC |
Maximum excitation |
15 |
Volts DC |
Insulation Resistance |
>5000 |
Megaohms |
Construction material |
Alloy tool steel |
|
Environmental protection |
IP68 |
|
Cable |
6 meter 4-core screened nitrile |

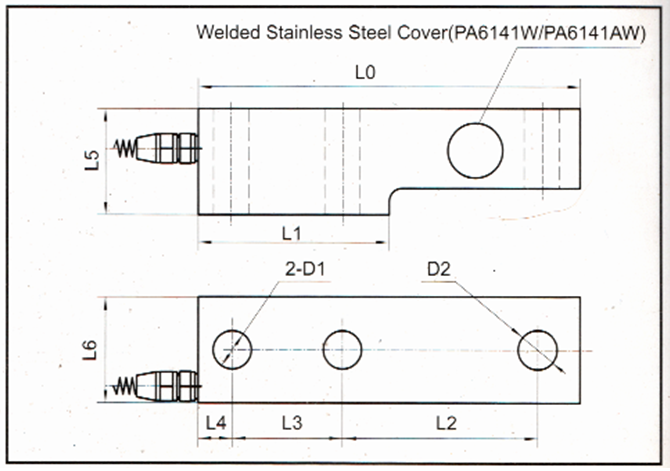

DIMENSIONS SPECIFICATIONS
Capacity |
L0 |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
D1 |
D2 |
|---|---|---|---|---|---|---|---|---|---|
1T/1.5T |
200 |
100 |
100 |
65 |
20 |
45 |
40 |
13 |
13 |
2T |
200 |
100 |
100 |
65 |
20 |
45 |
50 |
17 |
16 |
3T |
200 |
100 |
100 |
65 |
20 |
45 |
50 |
21 |
16 |
5T/7T |
235 |
118 |
123 |
66 |
22 |
70 |
54 |
25 |
25 |
10T |
280 |
140 |
140 |
83 |
25 |
80 |
64 |
31 |
31 |
-- |
-- |
-- |
-- |
-- |
-- |
-- |
-- |
-- |
-- |
1T/1.5T A/AW |
200 |
100 |
100 |
65 |
20 |
45 |
40 |
13 |
17 |

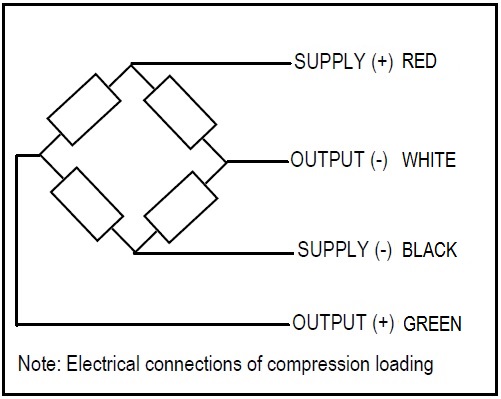

WIRING DIAGRAM
